Self-adhesive Liquid Silicone Rubber For PET

Name: Self-adhesive Liquid Silicone Rubber For PET
Brand: Dongguan City Betterly New Materials Co., Ltd.
Price: 100 USD

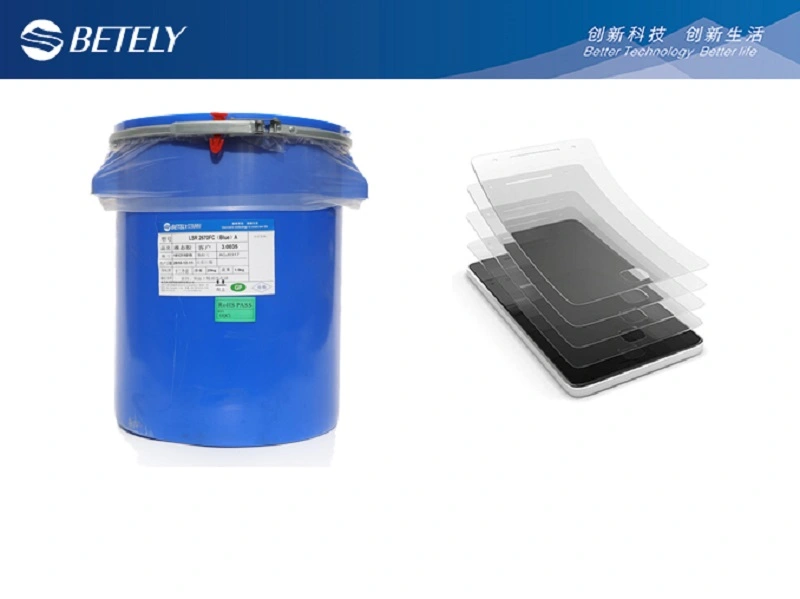

The self-adhesive LSR is a two-component, semitransparent self-adhesive addition liquid silicone rubber. It bonds to PET items and releases from metal molds. The LSR is easy to dye. It has good adhesion on the PET substrate.

Get A Quote

Category: Self-adhesive LSR

Performance Parameters Application Process Brand Comparision Product Certificate

The Performance Parameters Of Product Introduction Of Self-Adhesive Liquid Silicone Rubber For PET

Material/Model	Unit	Test Standards	PC/PET/PBT
Material/Model	Unit	Test Standards	BQ-7133A/B	BQ-7143A/B	BQ-7153A/B	BQ-7163A/B	BQ-7173A/B
Viscosity A/B	Pa·s	GB/T10247	690/1000	1300/1450	2210/3680	1672/2784	8000/12000
Curing condition T10/T90	120℃/s	GB/T1233	25/55	23/40	33/64	32/70	24/69
Gravity	g·cm-3	GB/T533	1.1	1.12	1.13	1.13	1.14
Hardness	TypeA	GB/T531	31	40	52	60	68
Tensile strength	Mpa	GB/T528	7	7.5	8	8	7.5
Elongation	%	GB/T528	500	450	400	350	310

Application Process Of Product Introduction Of Self-Adhesive Liquid Silicone Rubber For PET

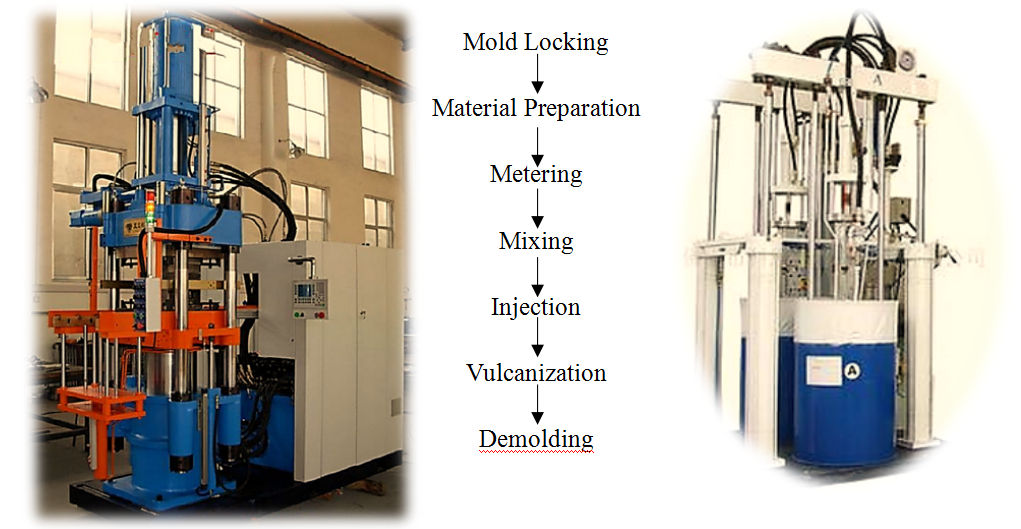

Main process

It is especially suitable for film coating of liquid silicone rubber and PET(pressure-sensitive glue)
Brand Comparision Of Product Introduction Of Self-Adhesive Liquid Silicone Rubber For PET
- Fast curing speed
- Excellent mechanical properties
- Both injection molding and molding are available
Product Certificate Of Product Introduction Of Self-Adhesive Liquid Silicone Rubber For PET
