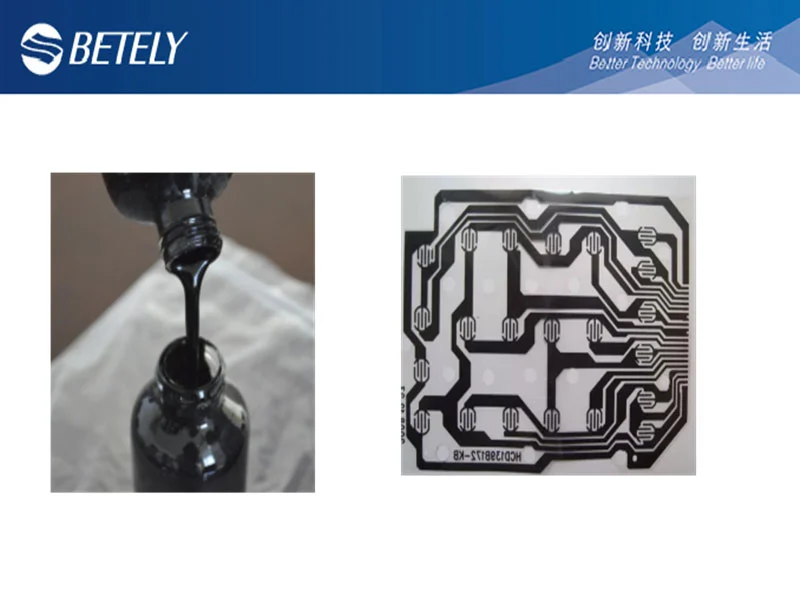

Carbon Paste SF-1600

SF-1600 is a halogen-free one component baking conductive carbon paste, which is made of high-performance resin and conductive powder.It is mainly suitable for pet, PC, PVC, TPU and other substrates. It has excellent printability, conductivity, adhesion and hardness. The product meets ROHS standard.

Get A Quote
Category: Conductive Carbon Paste
  • Product Features Of Carbon Paste SF-1600

    • It is mainly suitable for PET, PC, PVC, TPU and other substrates.

    • It is widely used in industries such as blood glucose test strips, conductive circuits, electromagnetic shielding, physical therapy and fever.

  • Performance Parameters Of Carbon Paste SF-1600

    • Appearance: Black Grey

    • Viscosity: 20000-40000 MPa. S

    • Solid content: ≥ 35%

    • Curing process: blast oven: 130 ℃×20min

    • Volume resistance: ≤ 5×10-2Ω·cmƒ

    • Hardness (Zhonghua pencil, 2kg): ≥ 2H adhesion (3m600 tape): no falling off

    ① : Brookfield hadv-i rotary viscometer, 14 × rotor, 20rpm, 25 ℃

    ②:150 ℃×60min

  • Using Manual Of Carbon Paste SF-1600

    • Substrate: pet (pre-drying at 155 ~ 160 ℃ for 60 minutes)

    • Screen type: polyester screen or stainless steel

    • Screen mesh: 150 ~ 250 mesh,

    • Wire diameter: 28 ~ 34 meshμM

    • Latex thickness: 6μM

    • Screen tension: 20 ~ 28n

    • Scraping hardness: 65-75 (Shore hardness) printing Thickness: > 6μM

    • Cleaning agent: acetone, butyl acetate

  • Using Precautions Of Carbon Paste SF-1600

    1. Since the silver in the product will settle or jelly after being placed for a period of time, please stir it evenly before each use. It is recommended to use a blender for 1 hour before use. The screen should be clean and dry;



    2. The environment is recommended for use. The temperature is controlled at 18~22℃, and the humidity is ≤60%;



    3. The viscosity of the conductive silver paste has been adjusted, so do not add diluent at the beginning of use;



    4. Use the silver paste within 24 hours after opening, and cut the unused silver paste Do not place it open, cover the inner and outer covers, and store it in a sealed;



    5. The recycled silver paste must be stored and used separately from the normal silver paste, and cannot be mixed. To adjust the viscosity of the recycled silver paste, a special thinner XSJ-533B is required, and the addition amount does not exceed 1.5% of the total mass of the silver paste. In the long-term printing process of silver paste, if the viscosity of the paste increases, the thinner XSJ-533B can be added appropriately, and the addition amount should not exceed 1.5% of the total mass of the silver paste;



    6. The substrate must be strictly dried before printing. Dust removal and static removal treatment;



    7. Do not touch the substrate and silver wire parts with bare hands during operation;



    8. The working environment should not contain corrosive gases such as sulfide and chloride;



    9. Operators must wear masks, hats, and gloves Etc., do not use labor protection products containing sulfide;



    10. Wash the skin with water and soap in time when it comes in contact with the skin.

  • Package Of Carbon Paste SF-1600

    carbon paste sf 1600 supplier


    1kg/bottle, 2kg/bottle, 15kg/bottle
